Re: ThePearDream's Talman Projects

Post by wingnutkj » Tue Nov 06, 2018 3:23 am

That looks fantastic! Great job!
Kenny

User avatar
hardtail01
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 136
Joined: Sun Sep 09, 2012 3:29 pm

Re: ThePearDream's Talman Projects

Post by hardtail01 » Thu Nov 22, 2018 2:29 pm

I'm curious about which bridge you used for your TC420. I was thinking about changing the two point bridge in mine for a six screw strat trem.

I'm concerned about the bridge sitting too low. How did you overcome that?

User avatar
ThePearDream
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 667
Joined: Sun Jun 25, 2017 6:18 am
Location: Colorado
Contact:

Re: ThePearDream's Talman Projects

Post by ThePearDream » Fri Nov 23, 2018 7:22 am

I don't recall specifically what bridge I used (it came from my parts box), but it has an import string spacing & GFS block saddles. As far as bridge height, there isn't any adjust-ability for that with six screw trems - it all needs to happen with the saddles and neck angle. FWIW, I only used a six screw bridge because I had to, I would almost always prefer a modern 2 point trem. You should try switching to a better 2 point trem before making a permanent switch to a six screw unit.

User avatar
hardtail01
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 136
Joined: Sun Sep 09, 2012 3:29 pm

Re: ThePearDream's Talman Projects

Post by hardtail01 » Fri Nov 23, 2018 7:01 pm

Thanks for the quick response. With the current two point setup, the bridge rests a couple of millimeters off the top of the guitar in order to get proper string height. My concern being the six point trem would sit right on the top with no gap, and the strings might be too low unless I adjusted the saddles beyond their usable limits.

I really like what you did with yours and I prefer the six point trem(I don't use the trem much and would prefer the stability while also occasionally using it as a trem). I just don't want to mess it up.

User avatar
ThePearDream
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 667
Joined: Sun Jun 25, 2017 6:18 am
Location: Colorado
Contact:

Re: ThePearDream's Talman Projects

Post by ThePearDream » Sat Nov 24, 2018 11:03 am

hardtail01 wrote:
Fri Nov 23, 2018 7:01 pm
Thanks for the quick response. With the current two point setup, the bridge rests a couple of millimeters off the top of the guitar in order to get proper string height. My concern being the six point trem would sit right on the top with no gap, and the strings might be too low unless I adjusted the saddles beyond their usable limits.
In a case like that I would shim the neck pocket on the end closer to the nut, tilting the neck forward slightly. That will result in an increase in string height, allowing the saddles to be adjusted lower.

I actually had to do this to my TC620. Even with the 2 point tremolo, I didn't have enough range of adjustment without using a shim.

User avatar
smjenkins
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 482
Joined: Fri Oct 08, 2010 5:45 am
Location: The Emerald Fucking City

Re: ThePearDream's Talman Projects

Post by smjenkins » Wed Feb 13, 2019 3:54 pm

This is basically a ThePearDream Talman project so I figured I'd post about it here. I was so enamored with Doug's purple flake Talman that I asked if he'd make a bound Talman body for me and he agreed. The body, pickguard and control plate arrived today. The body binding and pickguard are cream so there's not a ton of contrast in the mock-up pics below. I'm also going to use Doug's design for a "double single coil" pickup cover and I'm working with Jason (Shadoweclipse13) on a wiring plan that will put all the knobs and switches to good use.

I'm really impressed with the quality of Doug's work. The woodwork and sanding on the body is top notch and the pickguard, control plate (actually made out of metal!) and binding are done with such precision. There are some incredible luthiers on this forum.

Here's a few pics with the Warmoth neck I'll be using and the swatch of the color green I'm planning to go with:




User avatar
ThePearDream
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 667
Joined: Sun Jun 25, 2017 6:18 am
Location: Colorado
Contact:

Re: ThePearDream's Talman Projects

Post by ThePearDream » Wed Apr 10, 2019 6:36 am

I made an extra pickguard for Mike's project above, and was curious about how it'd look on mine.

Behold the J Mascis Talman!

Mike, your pickguard is ready btw :D.

User avatar
El Reclusa
PAT PEND
PAT PEND
Posts: 44
Joined: Wed Jan 20, 2010 6:05 pm

Re: ThePearDream's Talman Projects

Post by El Reclusa » Sat Apr 13, 2019 6:23 am

This thread is awesome.

User avatar
mbene085
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 3939
Joined: Tue May 24, 2016 5:07 am

Re: ThePearDream's Talman Projects

Post by mbene085 » Sat Apr 13, 2019 6:27 am

Amazing work. I dig every update in this thread!

User avatar
ThePearDream
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 667
Joined: Sun Jun 25, 2017 6:18 am
Location: Colorado
Contact:

Re: ThePearDream's Talman Projects

Post by ThePearDream » Sat Apr 13, 2019 7:26 am

Thanks gents!

User avatar
Rgand
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 758
Joined: Sun Mar 05, 2017 3:55 pm

Re: ThePearDream's Talman Projects

Post by Rgand » Sat Apr 13, 2019 8:18 am

I really like this Tallman design. It's a pleasing shape with plenty of room for wiring options.

User avatar
Braddd
PAT PEND
PAT PEND
Posts: 12
Joined: Sat Feb 16, 2019 3:12 am

Re: ThePearDream's Talman Projects

Post by Braddd » Mon Apr 15, 2019 2:50 am

Good to hear I'm not the only Talman fan out there. But never played one. Do they handle like a strat / Tele? They look like an easy mod and build.

User avatar
ThePearDream
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 667
Joined: Sun Jun 25, 2017 6:18 am
Location: Colorado
Contact:

Re: ThePearDream's Talman Projects

Post by ThePearDream » Mon Apr 15, 2019 6:52 am

Braddd wrote:
Mon Apr 15, 2019 2:50 am
Good to hear I'm not the only Talman fan out there. But never played one. Do they handle like a strat / Tele? They look like an easy mod and build.
Being an offset, they do feel different from either a strat or tele. The shape is a bit of a Tele/Jazzmaster mix, while they feel and play like a Strat built with a Mustang body. It's worth noting that anyone who can't get past the location of the volume knob on strats, won't like a Talman. The newer reissue models will be easier for modding, since there is less proprietary hardware, and I feel that the overall quality is higher in these.

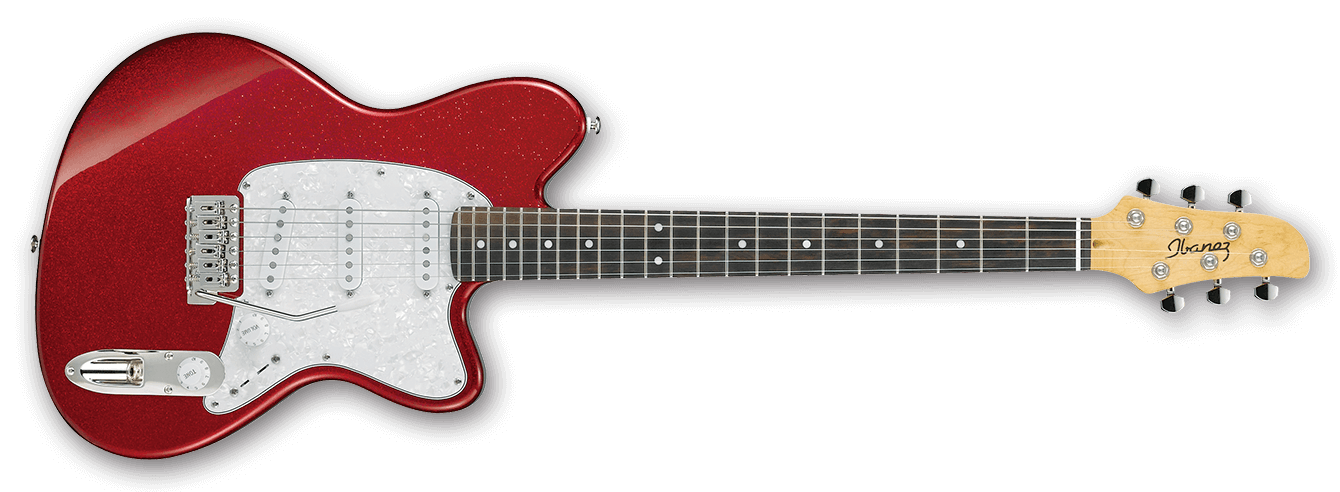

If anybody is on the fence, look at the TM330P.
-Alder body with red sparkle finish
-Locking tuners & bone nut
-Straight pull headstock without a string tree
-Fretboard is bound in matching wood
-Great upper fret access
-Easy availability of custom pickguards these days
-Can easily be found for under $400


User avatar
Braddd
PAT PEND
PAT PEND
Posts: 12
Joined: Sat Feb 16, 2019 3:12 am

Re: ThePearDream's Talman Projects

Post by Braddd » Tue Apr 16, 2019 2:33 am

Great advice, cheers...had my eye on these as a potential low cost mod option, but for some reason they are way overpriced here in Australia, around the $400-500 mark for run down old 90s models, which will go close to a newish Squire. I see Ibanez is cranking them out again, so hopefully more reasonably priced ones make it to market.

User avatar
tribi9
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 9325
Joined: Thu Nov 29, 2007 11:38 am
Location: Canada Dry

Re: ThePearDream's Talman Projects

Post by tribi9 » Tue Apr 16, 2019 5:49 am

Great job. :-* :-*
Beware of for sale ads advertising Fender Squires, usually they're neither... and remember.. Say NO to relics!
