Re: Shadoweclipse13's Master Schematic Page!

Post by Shadoweclipse13 » Fri May 26, 2017 9:02 pm

PixMix wrote:Shadow, it's really nice of you to do this. Being one who struggles with the electrical aspect of guitars each time I put one together - thank you.
You are welcome! I struggle with this stuff sometimes too, but I also really enjoy doing it. I love a challenge and figuring out weird functionality!
Pickup Switching Mad Scientist
http://www.offsetguitars.com/forums/viewtopic.php?f=8&t=104282&p=1438384#p1438384

User avatar
Shadoweclipse13
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 5080
Joined: Fri Feb 07, 2014 9:22 pm
Location: Stuck in the dimension of imagination

Re: Shadoweclipse13's Master Schematic Page!

Post by Shadoweclipse13 » Mon Jun 05, 2017 5:34 am

Added requested schematic for frpax!
Pickup Switching Mad Scientist
http://www.offsetguitars.com/forums/viewtopic.php?f=8&t=104282&p=1438384#p1438384

User avatar
rank
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 906
Joined: Sun Oct 24, 2010 8:35 am

Re: Shadoweclipse13's Master Schematic Page!

Post by rank » Fri Jun 30, 2017 4:02 pm

I'm bookmarking this in the hopes of you getting the pics fixed
We are merely moving shadows-PS. 39:4-7

User avatar
Shadoweclipse13
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 5080
Joined: Fri Feb 07, 2014 9:22 pm
Location: Stuck in the dimension of imagination

Re: Shadoweclipse13's Master Schematic Page!

Post by Shadoweclipse13 » Sat Jul 01, 2017 2:33 am

rank wrote:I'm bookmarking this in the hopes of you getting the pics fixed
I have them all saved (so if you or anyone else needs one, I can email them to you), but as soon as I find a site that still does hosting, they'll be going back up.
Pickup Switching Mad Scientist
http://www.offsetguitars.com/forums/viewtopic.php?f=8&t=104282&p=1438384#p1438384

User avatar
rank
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 906
Joined: Sun Oct 24, 2010 8:35 am

Re: Shadoweclipse13's Master Schematic Page!

Post by rank » Sat Jul 01, 2017 6:12 pm

I just realized that I use photo bucket too & everything I've posted is gone as well. :fp:

I'm putting together a jazzmaster & have been looking for something different to do with the wiring.
We are merely moving shadows-PS. 39:4-7

User avatar
Shadoweclipse13
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 5080
Joined: Fri Feb 07, 2014 9:22 pm
Location: Stuck in the dimension of imagination

Re: Shadoweclipse13's Master Schematic Page!

Post by Shadoweclipse13 » Sat Jul 01, 2017 6:44 pm

rank wrote:I just realized that I use photo bucket too & everything I've posted is gone as well.

I'm putting together a jazzmaster & have been looking for something different to do with the wiring.
What are you thinking? I've probably got something you could use, and could email your personal email with a schematic if I do.
Pickup Switching Mad Scientist
http://www.offsetguitars.com/forums/viewtopic.php?f=8&t=104282&p=1438384#p1438384

User avatar
dylanafghjkl
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 352
Joined: Fri Jun 13, 2014 8:59 am
Location: Melbourne

Re: Shadoweclipse13's Master Schematic Page!

Post by dylanafghjkl » Sun Jul 02, 2017 4:44 am

RIP pics (i find imgur.com does well at not deleting pictures)

also i think in a little while I might need your help with some really stupid wiring that i want to do on a build so i'm posting in this thread so i can find it again easily. super helpful until the pictures all disappeared!!!

User avatar
Shadoweclipse13
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 5080
Joined: Fri Feb 07, 2014 9:22 pm
Location: Stuck in the dimension of imagination

Re: Shadoweclipse13's Master Schematic Page!

Post by Shadoweclipse13 » Sun Jul 02, 2017 6:12 am

dylanafghjkl wrote:RIP pics (i find imgur.com does well at not deleting pictures)

also i think in a little while I might need your help with some really stupid wiring that i want to do on a build so i'm posting in this thread so i can find it again easily. super helpful until the pictures all disappeared!!!
No problem! I'm always on here :)
Pickup Switching Mad Scientist
http://www.offsetguitars.com/forums/viewtopic.php?f=8&t=104282&p=1438384#p1438384

User avatar
rank
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 906
Joined: Sun Oct 24, 2010 8:35 am

Re: Shadoweclipse13's Master Schematic Page!

Post by rank » Sun Jul 02, 2017 8:32 am

Shadoweclipse13 wrote:
rank wrote:I just realized that I use photo bucket too & everything I've posted is gone as well.

I'm putting together a jazzmaster & have been looking for something different to do with the wiring.
What are you thinking? I've probably got something you could use, and could email your personal email with a schematic if I do.
I am looking for something that is like a bridge/parallel/neck/series kind of thing using a rotary switch.
We are merely moving shadows-PS. 39:4-7

User avatar
Shadoweclipse13
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 5080
Joined: Fri Feb 07, 2014 9:22 pm
Location: Stuck in the dimension of imagination

Re: Shadoweclipse13's Master Schematic Page!

Post by Shadoweclipse13 » Sun Jul 02, 2017 9:55 am

rank wrote:
Shadoweclipse13 wrote:
rank wrote:I just realized that I use photo bucket too & everything I've posted is gone as well.

I'm putting together a jazzmaster & have been looking for something different to do with the wiring.
What are you thinking? I've probably got something you could use, and could email your personal email with a schematic if I do.
I am looking for something that is like a bridge/parallel/neck/series kind of thing using a rotary switch.
That's very doable. Have any preferable on the order of settings in the rotary?
Pickup Switching Mad Scientist
http://www.offsetguitars.com/forums/viewtopic.php?f=8&t=104282&p=1438384#p1438384

User avatar
rank
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 906
Joined: Sun Oct 24, 2010 8:35 am

Re: Shadoweclipse13's Master Schematic Page!

Post by rank » Sun Jul 02, 2017 12:07 pm

Shadoweclipse13 wrote: That's very doable. Have any preferable on the order of settings in the rotary?
Not really. Whatever makes the most sense lay out wise. This will be my first wiring job so whatever is the most "idiot proof".
We are merely moving shadows-PS. 39:4-7

User avatar
Shadoweclipse13
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 5080
Joined: Fri Feb 07, 2014 9:22 pm
Location: Stuck in the dimension of imagination

Re: Shadoweclipse13's Master Schematic Page!

Post by Shadoweclipse13 » Mon Jul 10, 2017 5:33 pm

rank wrote:
Shadoweclipse13 wrote: That's very doable. Have any preferable on the order of settings in the rotary?
Not really. Whatever makes the most sense lay out wise. This will be my first wiring job so whatever is the most "idiot proof".

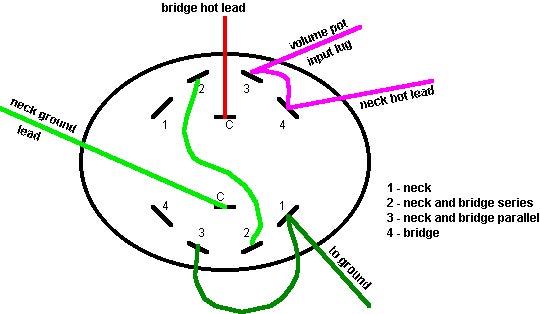

I finally got a few minutes to work on this, and then I found this! Haha. I could probably figure out a way to switch the positions if you need it to be a bit different.
Pickup Switching Mad Scientist
http://www.offsetguitars.com/forums/viewtopic.php?f=8&t=104282&p=1438384#p1438384

User avatar
JVG
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 110
Joined: Thu Aug 06, 2015 9:54 pm
Location: Sydney

Re: Shadoweclipse13's Master Schematic Page!

Post by JVG » Mon Jul 17, 2017 2:42 am

Shadoweclipse13 wrote:
JVG wrote:
Shadoweclipse13 wrote:You're welcome man! Have a picture of the switch? Rotaries can be tricky sometimes, but sometimes not. I could probably come up with something if I know what you've got
Here it is...any assistance would be awesome.

I just want it to operate as a simple 3-way pickup switch (i.e. neck, neck-bridge, bridge).
You'll have to confirm this with a continuity check, but a 4-pole, 3-position rotary, would work quite the same as a 2-pole, 3-position. It just has two extra poles for options. Just the same except, by my drawing, it would also have a pole C and pole D.

If everything works similar to what I've got above, to use it as a 3-way (after checking continuity between the terminals to be sure which outer 3 lugs are connected to which inner pole common lugs!!), you can use any two poles for the two pickup wires, to wire like this:
Took me longer than anticipated to get around to doing this job, but today was the day. Your schematic for the rotary worked, and the switch itself didn't need any grounding wire. It was actually a very simple wiring job - I was probably just spooked by the umber of lugs on the rotary switch!

User avatar
Shadoweclipse13
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 5080
Joined: Fri Feb 07, 2014 9:22 pm
Location: Stuck in the dimension of imagination

Re: Shadoweclipse13's Master Schematic Page!

Post by Shadoweclipse13 » Mon Jul 17, 2017 3:22 am

Awesome! Thanks for letting me know. Always like getting feedback that things work properly!! Sound pretty cool?
Pickup Switching Mad Scientist
http://www.offsetguitars.com/forums/viewtopic.php?f=8&t=104282&p=1438384#p1438384

User avatar
Shadoweclipse13
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 5080
Joined: Fri Feb 07, 2014 9:22 pm
Location: Stuck in the dimension of imagination

Re: Shadoweclipse13's Master Schematic Page!

Post by Shadoweclipse13 » Sat Jul 22, 2017 1:26 am

Master Schematic Page is back up and running!!!!
