drop-in tuners for coronado xii neck/early f tuner replacement

Bringing your older offset back to life.
Post Reply
User avatar
postchrist
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 97
Joined: Tue Aug 27, 2019 8:48 am

drop-in tuners for coronado xii neck/early f tuner replacement

Post by postchrist » Mon Dec 30, 2019 8:05 pm

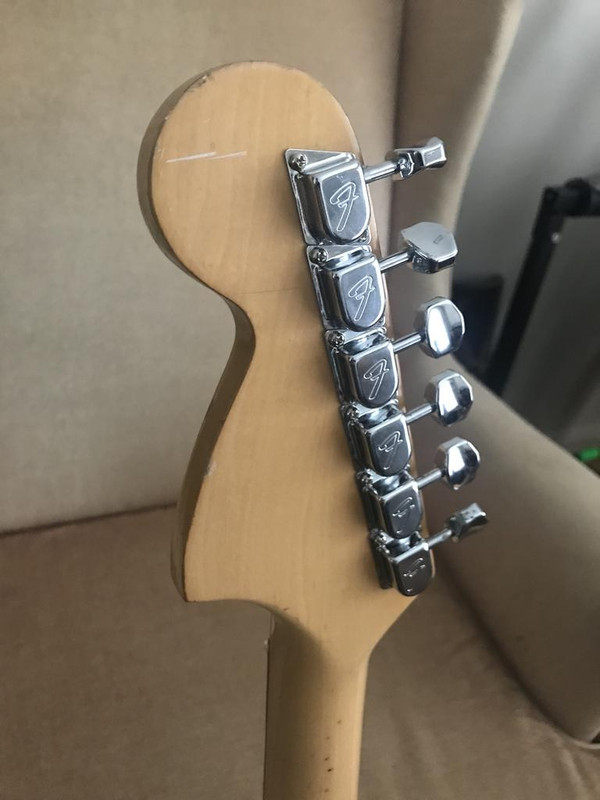

so i have a 67 coronado xii neck in need of tuning machines, really hoping to find drop in replacements without spending $300-400 on a set of vintage ones. the tricky part is that the neck is drilled for the straight-shaft f tuners without the sleeve, and all the modern replacements i can find would require widening the back of the peg-holes. on top of that, i think all the modern replacements also use the right hand oriented mounting plates, meaning way more drilling/modifying than i’m comfortable with.

if all else fails, i wouldn’t feel completely awful drilling mounting holes for a standard set of klusons, but obviously would really rather not modify the neck at all. anyone run into this issue before?
whatever you do, don’t call daddy!

User avatar
will
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 880
Joined: Sat Oct 20, 2012 3:36 pm
Contact:

Re: drop-in tuners for coronado xii neck/early f tuner replacement

Post by will » Tue Dec 31, 2019 6:29 pm

You can use the newer F tuners - you just need to disassemble them and saw/grind/file away that raised "collar."

Also, the covers for the newer ones are slightly bigger than the earlier "F" tuner covers, so the edges need to get filed a little bit - I'll see if I can find a post where I wrote about using them on a Coronado neck.

(Edit - I just checked - those photos were lost in the Photobucket apocalypse.)

User avatar
dr_hernandez
PAT PEND
PAT PEND
Posts: 1
Joined: Wed Jan 01, 2020 9:10 am

Re: drop-in tuners for coronado xii neck/early f tuner replacement

Post by dr_hernandez » Thu Jan 02, 2020 9:00 am

What I did with my Coronado XII was to use 2 of the Hipshot vintage guitar tuner upgrade kits (righty and lefty). It uses vintage holes and a mounting plate, so no drilling is required. Tuning and restringing is so much better now.

User avatar
Danley
PAT. # 2.972.923
PAT. # 2.972.923
Posts: 1951
Joined: Sun Dec 16, 2012 11:46 am
Location: California Republic

Re: drop-in tuners for coronado xii neck/early f tuner replacement

Post by Danley » Thu Jan 02, 2020 10:06 am

will wrote:
Tue Dec 31, 2019 6:29 pm
You can use the newer F tuners - you just need to disassemble them and saw/grind/file away that raised "collar."

Also, the covers for the newer ones are slightly bigger than the earlier "F" tuner covers, so the edges need to get filed a little bit - I'll see if I can find a post where I wrote about using them on a Coronado neck.

(Edit - I just checked - those photos were lost in the Photobucket apocalypse.)
I filed mine down; worth it not to affect the wood IMO. Using them on a Bronco neck the covers fit without needing to be filed, but I know there were at least two or three slight variances to the original F tuners, between Strats/Telecasters/Student models.


King Buzzo: I love when people come up to me and say “Your guitar sound was better on Stoner Witch, when you used a Les Paul. “...I used a Fender Mustang reissue on that, dumbass!
